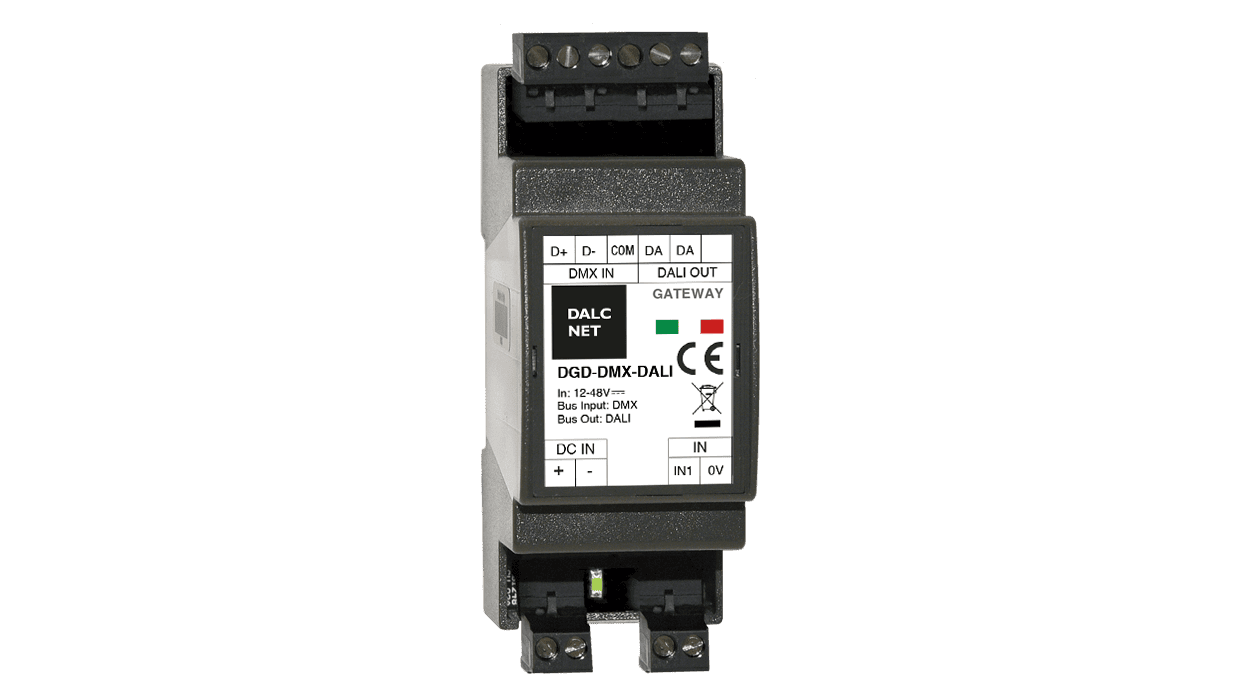

Signal converter DMX to DALI, DMX input, DALI output
CHF 155.00 excl. VAT, plus shipping costs
Description
-converter from DMX protocol to DALI protocol
-Possibility of controlling devices with DMX protocol via the DALI protocol
The DGD-DMX-DALI only converts the first 64 DMX channels into 64 DALI addresses.
The DGD-DMX-DALI converts from DMX protocol to DALI protocol and not vice versa.
The DMX channels from 1 to 64 are fixed and are sent to the DALI addresses from 0 to 63 using the DIRECT ARC POWER command.
NOTE: The DGD-DMX-DALI requires a power supply in the DALI bus. The DALI devices must be addressed via the DALI programmer (e.g. with cod. DGM01-1248).
Technical data
- WANDLER+BUS
- DC input: 12-24-48 Vdc
- BUS command input: DMX
- Output: DALI
- Extended temperature range
- 100% function test
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
Data sheets
| DGD-DMX-DALI | PDF(456.46 KB) |
|---|
