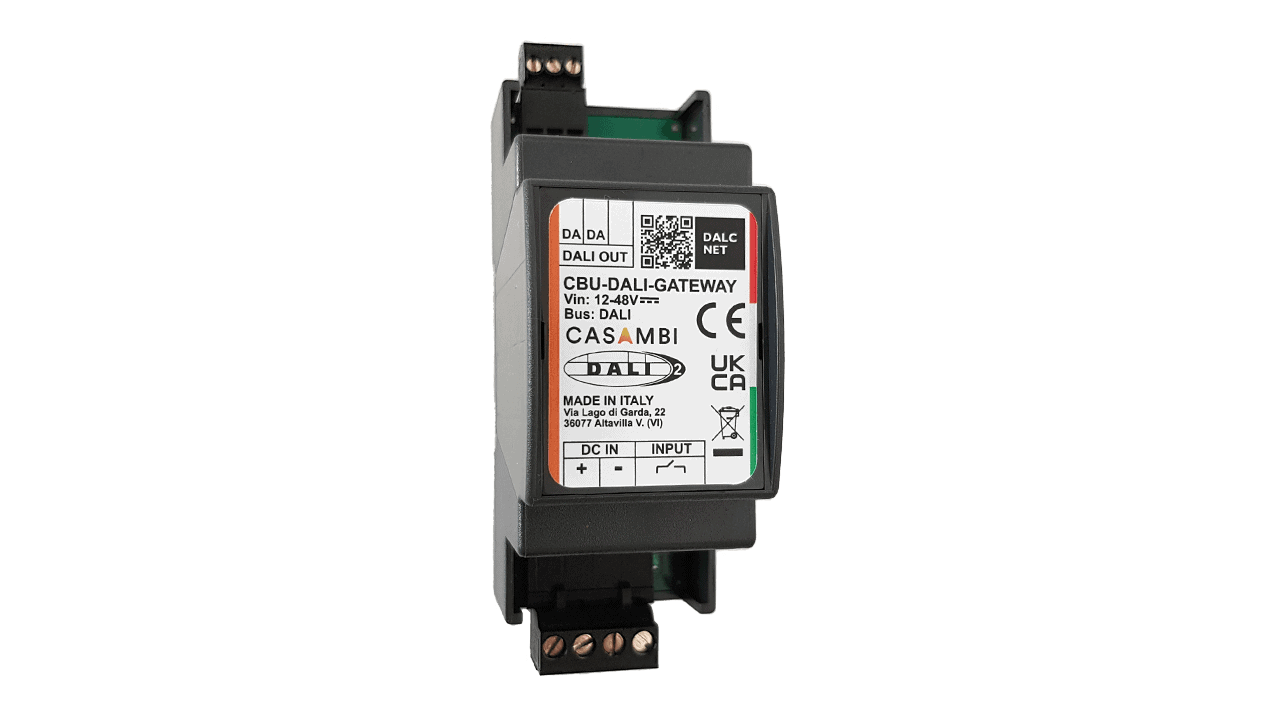

CASAMBI to DALI signal converter, CASAMBI input, DALI output
CHF 235.00 excl. VAT, plus shipping costs
Description
The device receives the command signal from the Casambi APP and sends the signal in a predefined sequence of DALI addresses depending on the set luminaire.
See page 7 in the data sheet for the DALI address overview.
With the "CBU DALI GATEWAY" profile, the device receives commands from an external DALI master and sends control signals to the Casambi lamps in the network to which it is assigned. Each Casambi lamp has a DALI address.
In the case of Casambi Tunable White or RGB/RBGW devices, these are recognized by the DALI master as DALI DT8.
Technical data
- CONVERTER+CASAMBI+DALI+GATEWAY
- Input: DC 12-24-48 Vdc
- DALI2 certified
- Command: CASAMBI APP
- Local control programmable from CASAMBI APP: Button no. 1 Normally open
- Casambi signal to DALI protocol converter and vice versa
- Possibility to control devices with DALI control via CASAMBI APP
- Possibility of addressing DALI devices
- Extended temperature range
- 100% function test
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
Data sheets
| CBU-DALI-GATEWAY | PDF(366.12 KB) |
|---|
