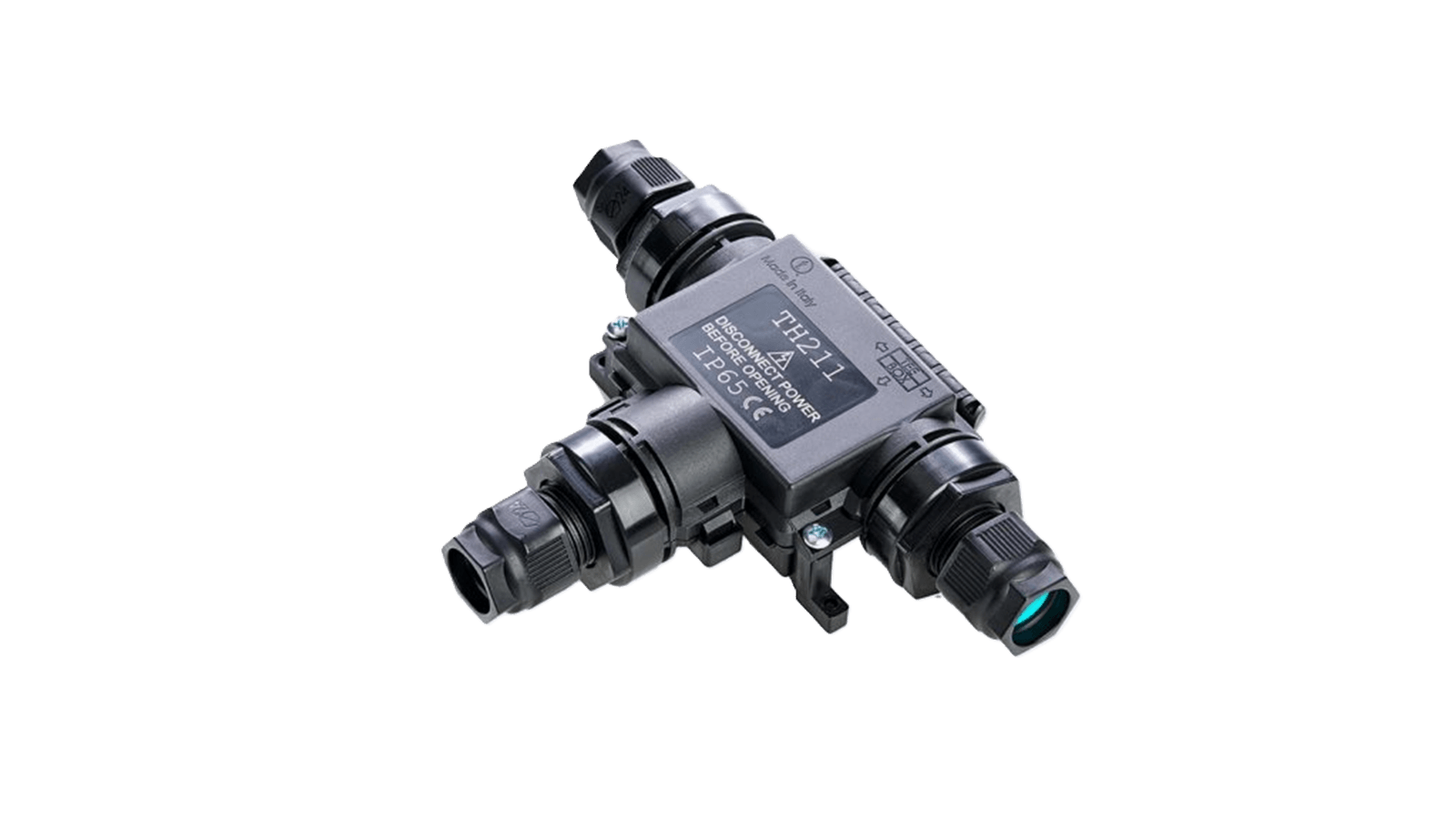

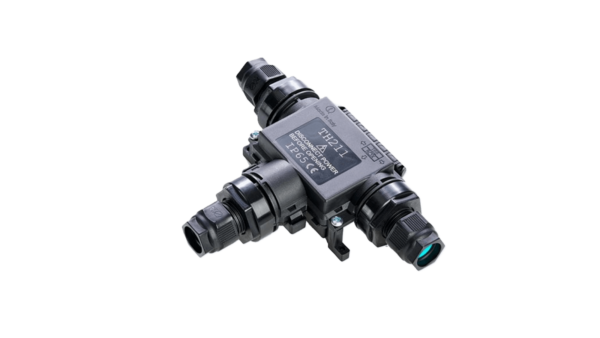

Techno T-distributor/cable socket TH211, 3-gang, 3P, D7-13.5, IP65
CHF 16.00 excl. VAT, plus shipping costs
Description
TH211 cable socket from Techno, Italy
3-gang cable junction box with cable connector from Techno.
- 3-way T-distributor with 3-pole cable connector
- For cable diameter: Ø 7.0 - 13.5 mm
- External dimensions: 137.0 x 118.0 x 36.0 mm
- Internal dimensions: 58.0 x 45.0 x 27.0 mm
- Protection classes: IP65
Other Techno products and designs on request.
Technical data
Number of outputs: 3
External dimensions: 137.0 x 118.0 x 36.0 mm
Internal dimensions: 58.0 x 45.0 x 27.0 mm
Temperature range: T 85°C
Housing material: PA66 UL94 V2
O-rings: TPE
Material properties: Halogen-free, silicone-free
Subject to errors and technical changes
Additional information
| Cable sockets and power distributors | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| Circular connector | ||||||||||||||||
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
Data sheets
| TH 211 | PDF(991.89 KB) |
|---|
