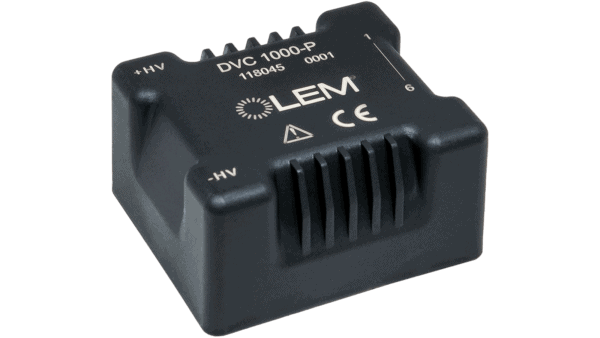

Voltage transformer
Voltage transformer 1000VRMS / Measurement of DC, AC, pulse voltages
CHF 95.20 excl. VAT, plus shipping costs
Item no:
DVC 1000-P
Stock:219 Available immediately
Description
- Nominal AC and DC voltage measurement of 1000 V
- Compact: 37.4 cm3 total volume
- Space-saving: 37 x 43 x 23.5 mm
- Printed circuit board assembly
- Weight: 22 g
- Robust
- Separation amplifier technology
- High overall accuracy over the temperature range: 1.5%
- Fast response time: 10 us at 90%
- Manufacturer LEM
Technical data
- Voltage output
- Power supply 0, +5 V
- Operating temperature range from -40 to + 85 ° C
- Bandwidth (-3 dB): 47 kHz
- Insulation test voltage of 4.2 kV
- IRIS-compliant for traction applications
- All relevant fire and smoke requirements prescribed for railroad applications are met
Additional information
| Voltage transformer | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| DVC 1000-P | PDF(628.46 KB) |
|---|
Downloads
| 3D Step File DVC 1000-P | Zip file (671.19 KB) |
|---|
