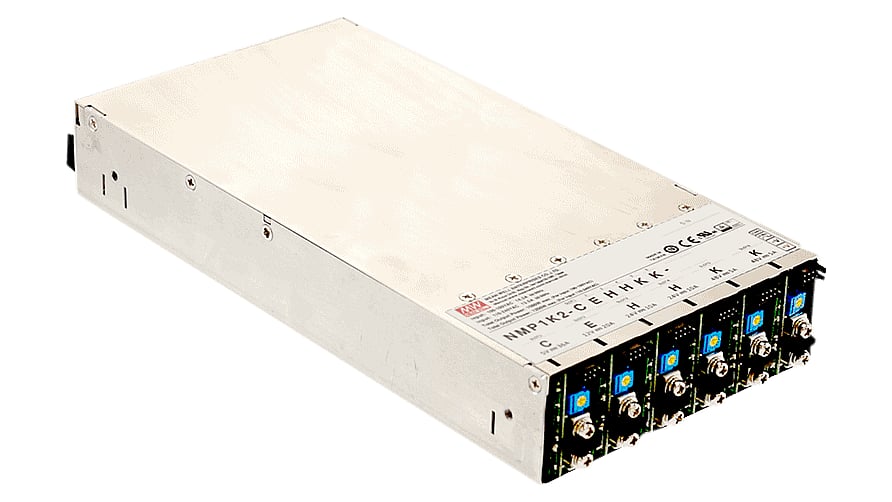

The NMP series from MEAN WELL can be configured with different output voltages. A chassis with 650W and 4 plug-in units and a chassis with 1200W and 6 plug-in units are available. All modules have built-in intelligent control functions. Not only can voltage and current be controlled externally, the individual modules can also be switched on and off individually and various status signals such as temperature warning and DC OK signal can be tapped. With its very high flexibility, the NMP series makes it possible to generate a wide range of voltages from one power supply unit without high development costs and the loss of time associated with customer-specific development. The NMP series is approved in accordance with the latest medical standards to MOPP level, comes with a 5-year guarantee and is the ideal power supply unit for complex applications with a wide range of supply voltages.
Properties
- Flexible design for up to 6 different, isolated output voltages per power supply unit
- Voltage and current programmable
- Parallel and series connection of individual modules possible
- Demand-controlled fan (temperature-dependent)
- Approved up to 5000m above sea level
- Temperature range -30° to +70°C
- Medical approval EN/ANSI / IEC 60601-1 according to 2xMOPP level
- Dimensions: NMP-650: 250 x 89 x 41mm (L x W x H)
NMP-1k2: 250 x 127 x 41mm (L x W x H)
