With a height of just 22mm, a very wide adjustable current range and DALI 2.0 versions with monitoring function, the FLS-PRO LED drivers cover a wide range of applications and enable an effective reduction in stock items.
A particular highlight of this series is the compact design of just 98mm x 43mm x 22mm with up to 42 watts of power. Up to 16 different currents can be set using the DIP switch on the device. Thanks to the enormous flexibility, a wide variety of LED boards can be used with the same control gear.
In addition to the standard version without integrated dimming, variants with DALI and AC Push dimming are also available. The DALI 2.0 version has integrated parts 251, 252 and 253. This allows the temperature and power consumption to be monitored. An operating hours counter and fault monitoring are also integrated. Errors such as excessive temperatures in the application, mains or DALI signal interruptions, overloads, short circuits etc. are registered in the device and can be read out via DALI.
High efficiency, certification for emergency lighting systems and a 5-year guarantee round off the overall package of this LED power supply unit.
FLS-PRO features
- Ultra-compact housing with a height of only 22 mm
- Removable protective caps with integrated strain relief
- Output currents adjustable via DIP switch
- High efficiency up to 90%
- EL certified
- DALI versions with integrated fault monitoring and maintenance function
-
FLS-42-1050-LD-PRO C
42W LED driver constant current 150 to 1050mA, 2.5 to 42VdcCHF 25.601219 Available immediately -

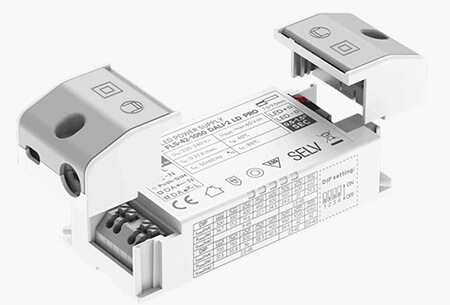

FLS-42-1050-DALI2-LD-PRO-C
42W LED driver constant current 300 to 1050mA, 2.5 to 49Vdc, DALI2, AC PushCHF 80.10Available to order -
FLS-30-700-DALI2-LD-PRO-C
30W LED driver constant current 150 to 700mA, 2.5 to 49Vdc, DALI2, AC PushCHF 64.801884 Available immediately
